| Category |
Travel Motor Parts |
| Name |

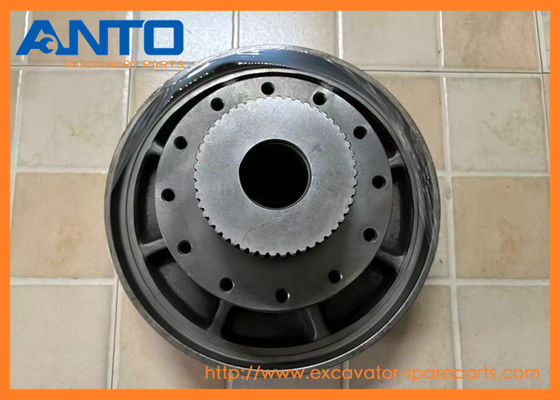

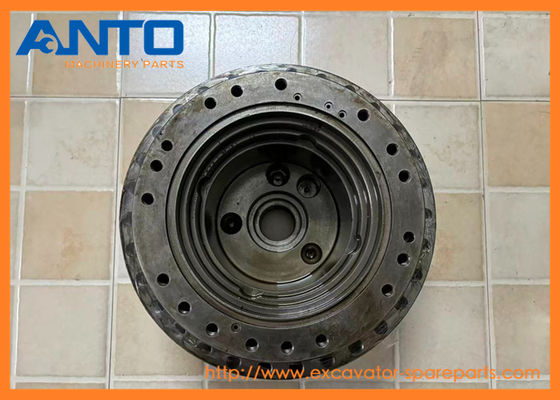

Shaft Casing |
| Parts No |
XKAY-00965 |
| Machine Number |
R110-7 R140LC-7 R210LC7 R215LC7 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
1.Critical Component Shielding: Protects expensive, high-precision parts (e.g., drive shafts, bearings) from damage, reducing maintenance costs and downtime.
2.Lubrication System Integrity: Retains lubricating oil and prevents contamination, ensuring smooth operation of rotating components and extending their service life.
3.Structural Stability: Reinforces the power transmission system’s connection to the machine frame, maintaining alignment during heavy loads or vibration.
4.Safety Enhancement: Prevents exposed rotating parts from posing hazards to operators or bystanders, complying with industrial safety standards.
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 RC215C7 RC215C7H RD210-7 RD210-7V RD220-7
9-SERIES CRAWLER EXCAVATOR R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 RB220LC9S RD220LC9 Hyundai
- More other shaft casing applied to HYUNDAI heavey machine
| 39Q6-11280 CASING A-VALVE |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9 |
| |
| 39Q6-41110 CASING |
| HX220L, HX220NL, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9 |
| |
| XKAQ-00962 CASING |
| HX160L, HX180L, R160LC7, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC7, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R21... |
| |
| 39Q4-11110 CASING |
| HW140, HX140L, R110-7, R110-7A, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| |
| XKAQ-00987 CASING |
| R140LC-7, RD110-7 |
| |
| XKAY-01837 CASING-SHAFT |
| R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| |
| 135308A CASING-VALVE |
| R170W3, R180LC3, R200NLC3, R200W3, R210LC3H, R210LC7, R320LC3 |
| |
| 113357B CASING(F) |
| R200W3, R210LC3H, R210LC7 |
| |
| 39Q6-11281 CASING A-VALVE |
| HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, ... |
| |
| 39Q6-12171 CASING |
| HX220L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, ... |
| |
| XKAQ-00659 CASING-SHAFT |
| R210LC7A |
| |
| 39Q6-12172 CASING |
| HW210, HX160L, HX220L, HX220NL, HX235L, R160LC9, R160LC9A, R160LC9S, R160W9A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9... |
| |
| XKAQ-00250 CASING |
| R140LC-7, R140W7 |
| |
| XJBN-01046 CASING-PUMP |
| HW140, HX140L, HX160L, HX180L, R110-7A, R1200-9, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W7A, R140W9, R140W9A, R140W9S, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7A, R170W9 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@ |
[1] |
TRAVEL MOTOR ASSY |
SEE 4139D |
| *-1. |
@ |
[1] |
TRAVEL MOTOR UNIT |
|
| 1 |
XKAY-00965 |
[1] |
CASING-SHAFT |
|
| 2 |
XKAY-00443 |
[10] |
PLUG |
|
| K3. |
XKAY-00444 |
[1] |
SEAL-OIL |
|
| A. |
XKAY-00445 |
[2] |
PISTON KIT-SWASH |
INCL 4,5 |
| N4. |
XKAY-00446 |
[1] |
PISTON-SWASH |
|
| N5. |
XKAY-00447 |
[1] |
RING-PISTON |
|
| 6 |
XKAY-00448 |
[1] |
SHAFT |
|
| 7 |
XKAY-00449 |
[1] |
BEARING |
|
| 8 |
XKAY-00450 |
[2] |
BALL-STEEL |
|
| 9 |
XKAY-01320 |
[1] |
SWASH PLATE |
|
| B. |
XKAY-00452 |
[1] |
ROTARY KIT |
INCL B-A,B,C |
| B-A. |
XKAY-00453 |
[1] |
KIT-CYLINDER BLOCK |
INCL 10-15,70 |
| N10. |
XKAY-00824 |
[1] |
CYLINDER BLOCK |
|
| N11. |
JA1L4006 |
[1] |
SPRING SEAT |
|
| N12. |
JA1L4007 |
[1] |
SPRING |
|
| N13. |
JA1L4008 |
[1] |
END PLATE |
|
| N14. |
SR62CH |
[1] |
SNAP RING |
|
| N15. |
JA1L4009 |
[3] |
PIN |
|
| B-B. |
JA3E5010 |
[1] |
RETAINER KIT |
INCL 16,17 |
| N16. |
JA1L4010 |
[1] |
BALLGUIDE |
|
| N17. |
JA1L4011 |
[1] |
SET PLATE |
|
| B-C. |
JA3E5011 |
[1] |
PISTON KIT |
INCL 18 |
| N18. |
JA1L4012 |
[9] |
PISTON ASS'Y |
|
| 19 |
JA1L4013 |
[3] |
FRICTION PLATE |
|
| 20 |
JA1L4014 |
[3] |
PLATE |
|
| 21 |
JA1L4015 |
[1] |
PARKING PISTON |
|
| K22. |
AO263A |
[1] |
O-RING |
|
| K23. |
JA1L4016 |
[1] |
BACK UP RING |
|
| K24. |
AO266A |
[1] |
Deleted... |
|
| K25. |
JA1L4017 |
[1] |
BACK UP RING |
|
| 26 |
JA1L4018 |
[1] |
ORIFICE |
|
| K27. |
PO007B |
[3] |
Deleted... |
|
| K28. |
AO268B |
[1] |
Deleted... |
|
| 65 |
JA1L4043 |
[4] |
PIN |
|
| 69 |
BB6207 |
[1] |
BEARING |
|
| 70 |
JA1L4047A |
[1] |
Deleted... |
|
| K. |
JA3E5006 |
[1] |
SEAL KIT |
SEE ILLUST |
| N. |
@ |
[AR] |
NOT SUPPLIED PARTS |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
